It is ideal for you if...
You have expensive tastes and you are not willing to sacrifice performance for anything. You want a bike that is not only capable of crushing up and downhill, but also has an attractive design. From the carbon frame and wheels to the fully wireless SRAM trail, one lap after another.
Features
Don't settle for just anything. You'll enjoy the best carbon and components, and a quiet motor that blends into the trails.
The SRAM X0 AXS wireless drivetrain offers extremely precise shifting and is strong enough for the trails and to perform optimally under load.
The RockShox suspension system is equipped with AirWiz technology that allows suspension adjustment in the blink of an eye.
Its small but powerful TQ engine is configured for the trails, it is quiet so you can enjoy the moment, and increase your power on climbs, offering a natural pedaling sensation.

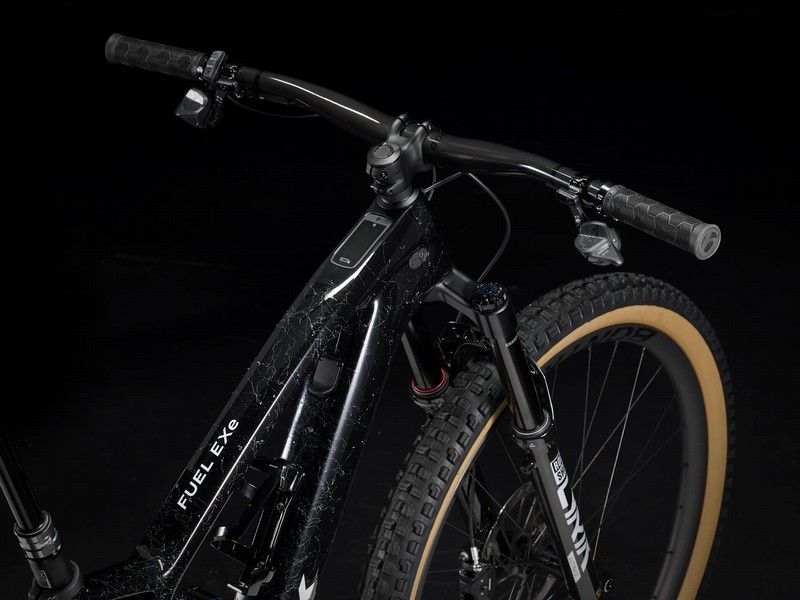

The integrated screen, charging port and controls are easy to use, discreet and intuitive.

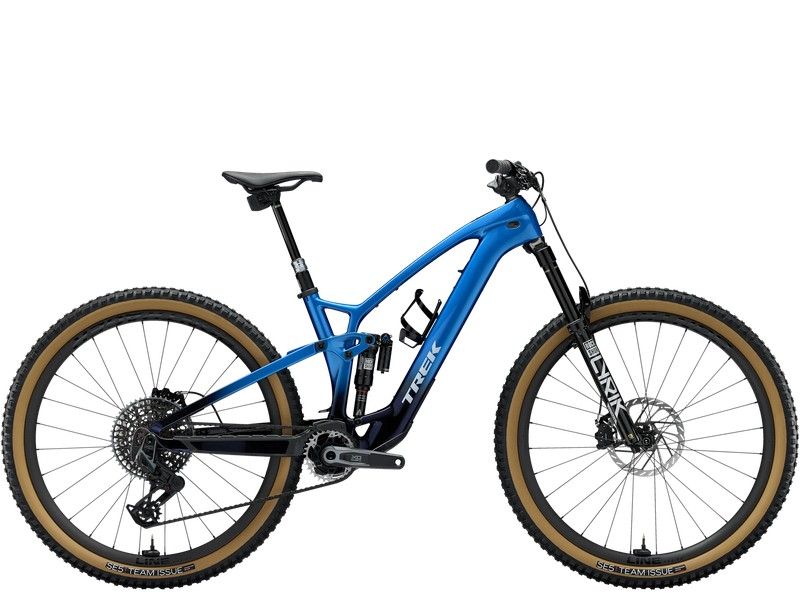

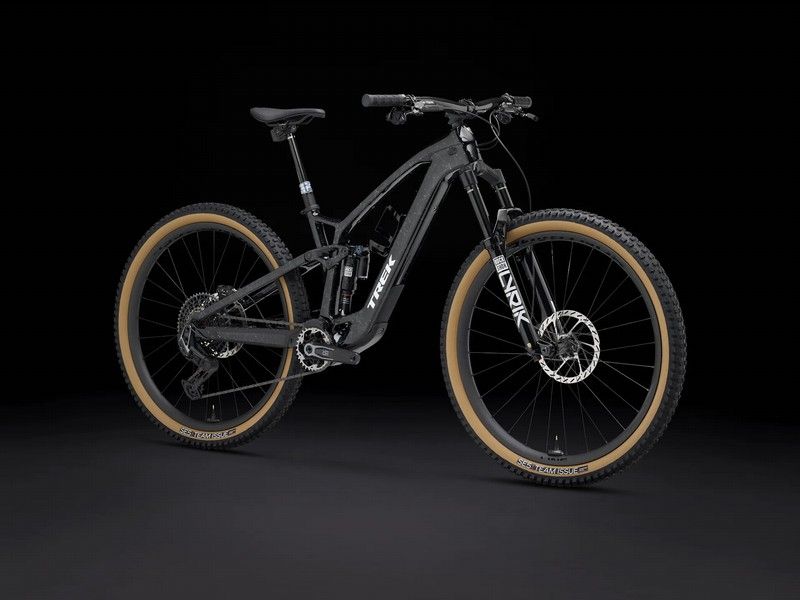

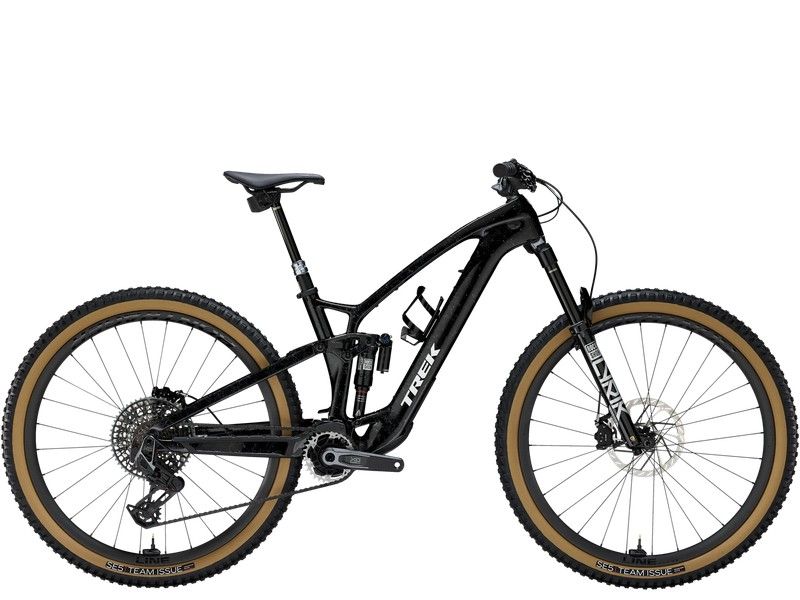

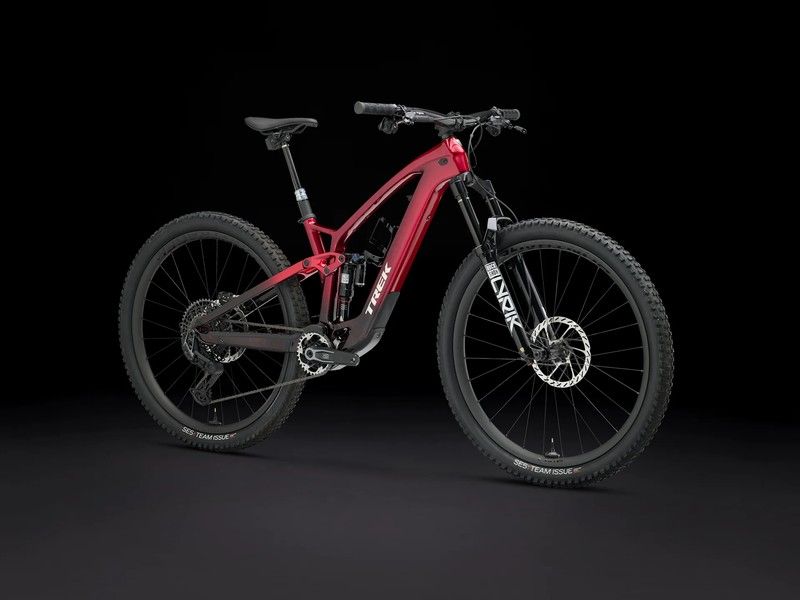

Frame Assembly
OCLV Mountain Carbon frame, removable battery, internal routing, aluminum rocker link, 34.9 mm seat tube, upper chain guide mount, 55mm chain line, Mino Link, ABP, Boost148, UDH, 140mm travel

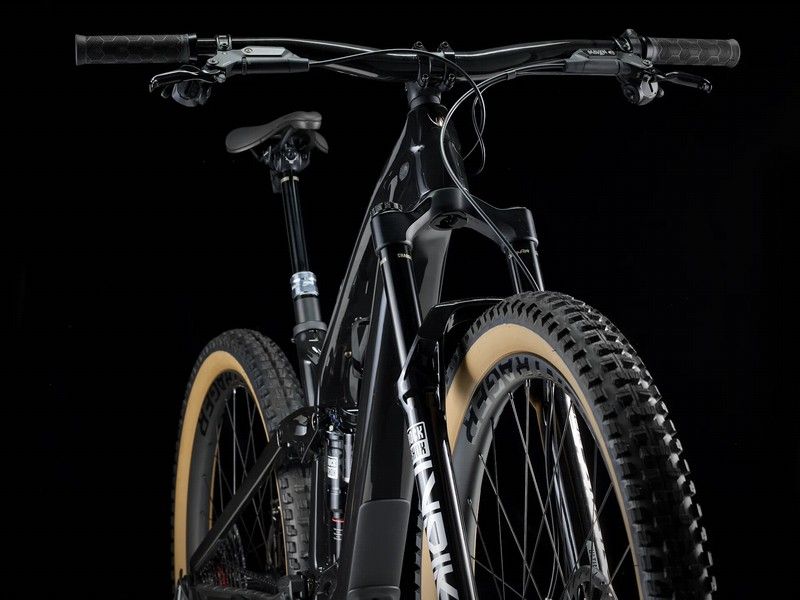

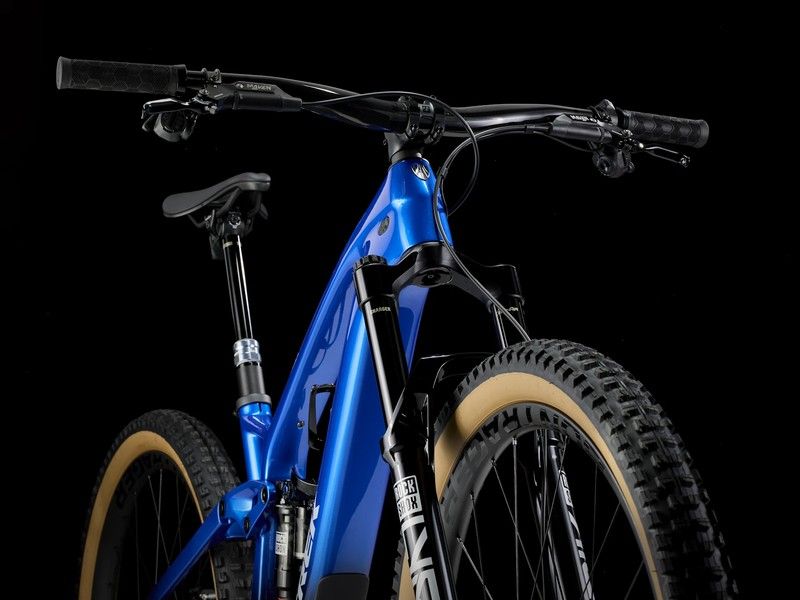

RockShox Lyrik Ultimate fork, DebonAir+ with ButterCups, Charger 3.1 RC, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

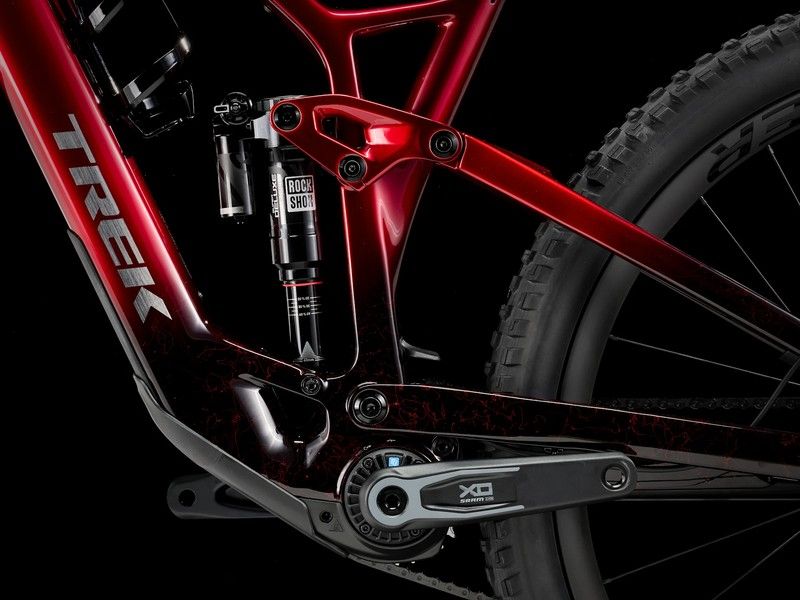

RockShox Super Deluxe Ultimate RC2T shock, 205x60 mm
Maximum compatible fork travel 160 mm
Wheels
Bontrager Line Pro 30 front wheel, OCLV Mountain carbon, Tubeless Ready, 6 bolts, Boost110, 15mm thru axle, 29"
Bontrager Line Pro 30 rear wheel, OCLV Mountain carbon, Tubeless Ready, Rapid Drive 108, 6 bolts, SRAM XD core, Boost148, 12mm thru axle, 29"
Rear closure Bontrager Switch thru axle, removable cam
*Cover
Size: S, M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 60 tpi, 29x2.50”
Size: S, M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 29x2.50”
Bontrager TLR Sealant Cover Piece, 6oz
Bontrager TLR rim tape
Max. size. Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
Electrical system
*Battery
Size: S, M, L, XL
TQ 360 Wh
Size: S, M, L, XL
SRAM eTap battery pack (with charger)
Charger TQ 4A Charger
Cycle computer TQ LED screen with Bluetooth and ANT+ connectivity
TQ-HPR50 motor, 50 Nm, maximum continuous power rating of 250 watts, maximum power of 300 watts

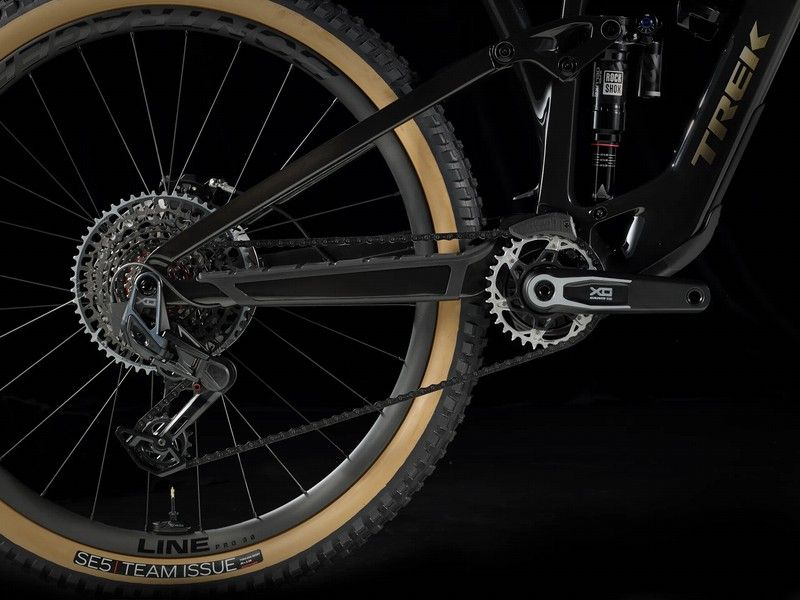

Transmission

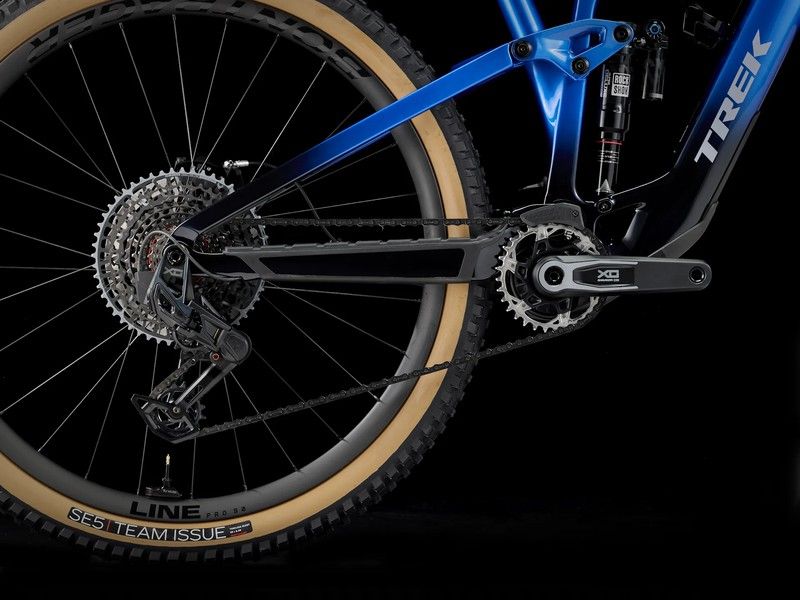

SRAM X0 Eagle AXS rear derailleur, T-Type
SRAM X0 Eagle bottom bracket, 165 mm length
SRAM Eagle XS-1295 cassette, T-Type, 10-52, 12 speeds
SRAM X0 Eagle chain, T-Type, 12 speeds
Maximum chainring size 1x: 34T, min 30T
Components
Verse Short Pro saddle, carbon rails, 145 mm width
*Seatpost
Size: S
RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
Size: M
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
Size: L, XL
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

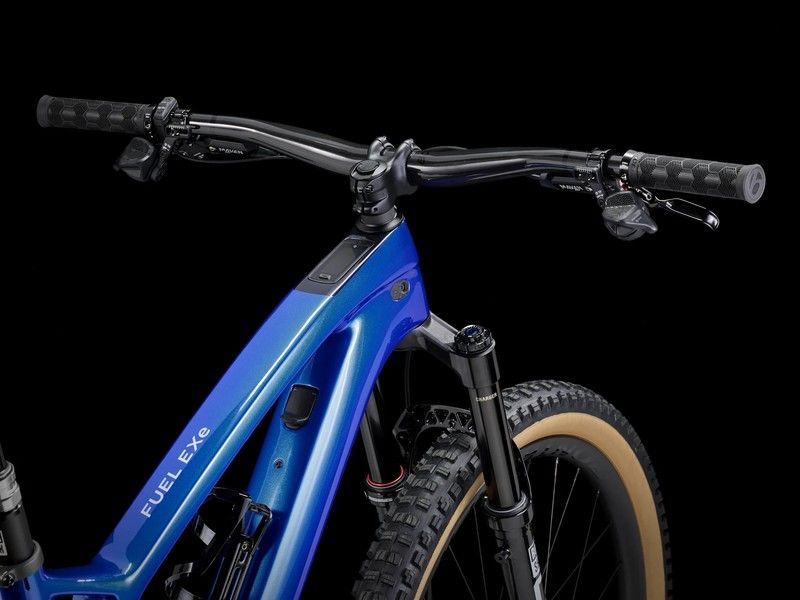

Bontrager Line Pro handlebar, OCLV carbon, 35 mm, height 27.5 mm, width 780 mm
Bontrager XR Trail Elite grips, nylon lock
Bontrager Line Pro stem, 35 mm, Blendr compatible, 0 degrees, 35 mm length
SRAM Maven Silver 4-piston hydraulic disc brake
SRAM brake disc 6 screws, 200 mm
Disc size Maximum brake disc sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Accessories
Bontrager BITS integrated multi-tool
Weight
Weight M - 18.93 kg / 41.74 lbs (with TLR sealant, without tubes)
Weight limit This bicycle has a maximum weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
