You will enjoy the latest in Bosch technology with the intelligent Performance Line CX system that has a 750 Wh battery with greater autonomy and practical functions that allow you to take your experience to the next level such as tracking your activity, navigation and Bluetooth connectivity. The new console is impeccably integrated, being practically flush with the horizontal tube, and the mini remote control is discreet and intuitive.
Features
- The Rail Carbon Gen 4 combines the same enduro-inspired geometry and high-capacity battery as the previous generation, but now also comes equipped with the intelligent Bosch system compatible with the console integrated into the horizontal tube and a mini remote control.
- The System Controller console displays the selected assistance level and the remaining battery level. It is perfectly integrated into the horizontal tube for maximum protection and a stylish look.
- The Bosch intelligent system offers the same power and responsiveness with a new and discreet mini remote control that has been simplified to incorporate only the controls you need to change from one assistance mode to another or activate walking mode with the bike.
- The eMTB and eMTB Lite intelligent modes automatically adjust the assistance based on your pedaling, providing the right amount of power you need at all times.
- The new frame is highly resistant with a 34.9 mm seat tube to incorporate more robust dropper posts, and an oversized head tube compatible with robust forks optimized for eMTB that offer more precise steering and less flex.
It is ideal for you if...
You are looking for a long-range carbon e-MTB, high-performance components and a very powerful battery. You're looking for the responsiveness of carbon, the stability of a longer reach, the comfortable feel of high-end suspension, and the latest Bosch technology.
Frame set
*Frame
Size :Y

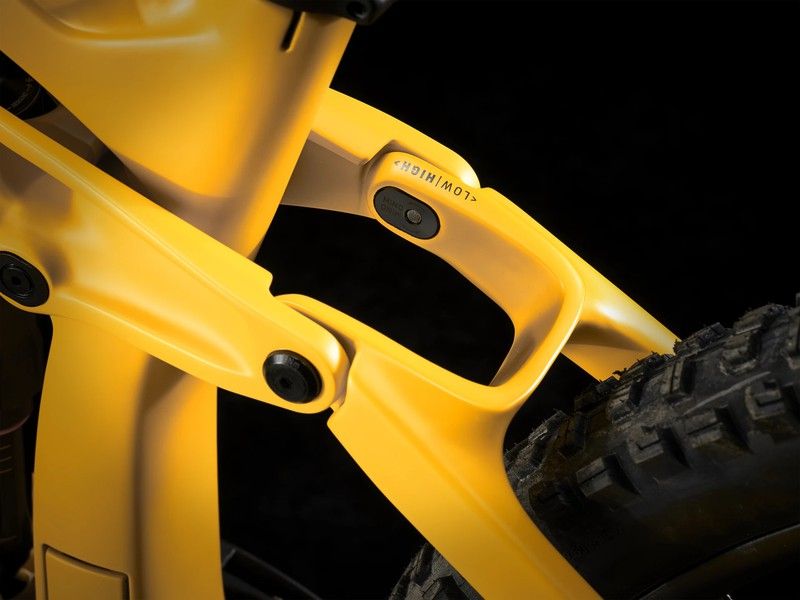

OCLV Mountain Carbon main frame, 1.8” lower head tube, compatible with Bosch System Controller, Removable Integrated Battery (RIB), Knock Block 2.0, internal cable routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel
Size: M, L, XL
OCLV Mountain Carbon main frame, 1.8” lower head tube, compatible with Bosch System Controller, Removable Integrated Battery (RIB), Knock Block 2.0, internal cable routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel
RockShox ZEB Select+ fork, DebonAir, Charger 3 RC2, 1.8" oversized and profiled fork tube, eMTB-optimized crown, 44mm offset, Boost110 , 15mm Maxle Stealth, 160mm travel
RockShox Super Deluxe Select+ RT shock, 230 mm x 57.5 mm
Maximum compatible fork travel 170mm (580mm from axle to crown)
Wheels
Bontrager Line Comp 30 front wheel, Tubeless Ready, 6 bolts, Boost110, 15mm thru axle, 29"
Bontrager Line Comp 30 rear wheel, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12mm thru axle, 29"
Rear closure Bontrager Switch thru-axle, removable cam
*Cover
Size: S, M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 29x2.50”
Size: S, M, L, XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 29x2.50”
Cover piece Bontrager TLR Sealant, 6oz
Bontrager TLR rim tape
Max. size. of the tire Frame: 29x2.60", Fork: See manufacturer
Electrical system
*Battery
Size: S
Bosch PowerTube 625 Wh, intelligent system
Size: M, L, XL
Bosch PowerTube 750 Wh, intelligent system
Bosch standard 4A charger, 230 V, intelligent system
*Console
Size: S, M, L, XL
Bosch System Controller BRC3100, intelligent system
Size: S, M, L, XL
Bosch BRC3300 mini remote control, intelligent system, 22.2 mm
Bosch Performance Line CX motor, intelligent system, magnesium motor body, 85 Nm
Transmission
- Shimano XT M8100 shift lever, 12 speeds
- Shimano XT M8100 rear derailleur, long cage
- E*thirteen E*spec Plus bottom bracket, 165 mm length
- E*thirteen E*spec chainring, 34T aluminum, 55mm chainline
- Shimano XT M8100 cassette, 10-51, 12 speeds
- Shimano XT M8100 chain, 12 speeds
- Pedal VP-536 nylon platform
- Maximum chainring size 1x: 34T
Components
Bontrager Arvada saddle, austenite rails, 138 mm width
*Seatpost
Size: S
Bontrager Line Elite dropper post, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Size: M
Bontrager Line Elite dropper post, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Size: L
Bontrager Line Elite dropper post, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Size: XL
Bontrager Line Elite dropper post, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Bontrager Line Pro handlebar, OCLV carbon, 35 mm, height 27.5 mm, width 780 mm
Bontrager XR Trail Elite grips, nylon lock
Bontrager Line Pro stem, 35 mm, Blendr compatible, 0 degrees, 45 mm length
4-piston hydraulic disc brake Shimano XT M8120
Shimano RT76 brake disc, 6 bolts, 203 mm
Disc size Maximum brake disc sizes - Frame: 200mm, Fork: see fork manufacturer
Weight: Weight M - 23.50 kg / 51.81 lbs (with TLR sealant, without tubes). This bike has a maximum weight limit (combined weight of bike, rider and cargo) of 136kg.
