It is ideal for you if...
You want to go to work with an electric bike that doesn't look, sound, or feel like an electric bike. You're looking for silent assistance that makes it easier to work on big slopes without taking you out of your element. Whether for handling or storage, weight is important, and you want an electric bike that is as light as possible, without sacrificing speed or power.
Features< /b>

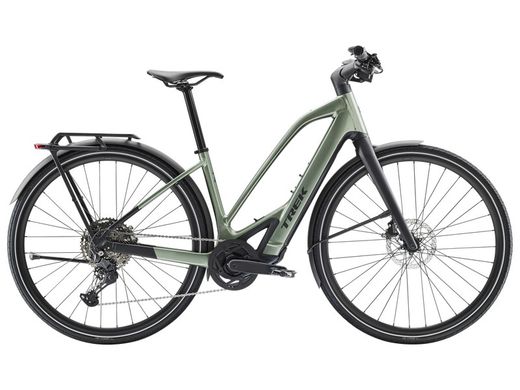

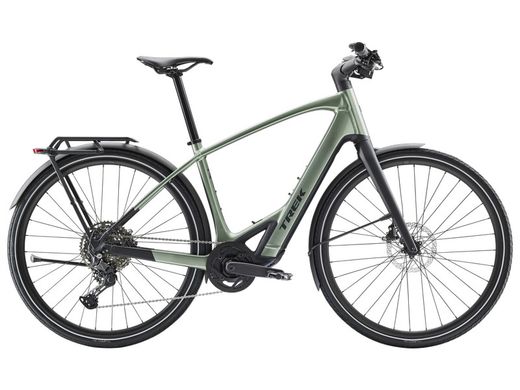

Not only is it an attractive bicycle to look at, but it is also a pleasure to go pedaling with it thanks to the natural and silent assistance it offers.
The motor TQ's HPR50 is light, compact, quiet and gives you the exact boost you you need on the steepest slopes.
Its Alpha Platinum aluminum frame keeps the cables and battery well stored inside.

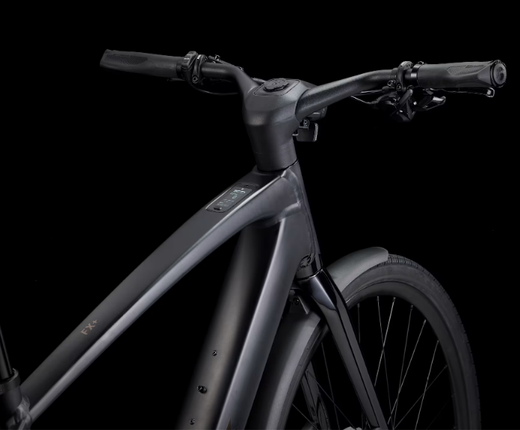

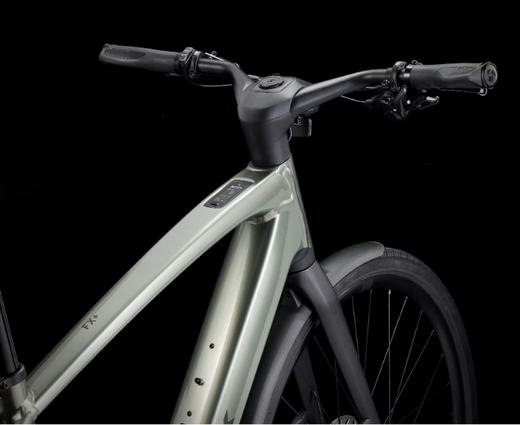

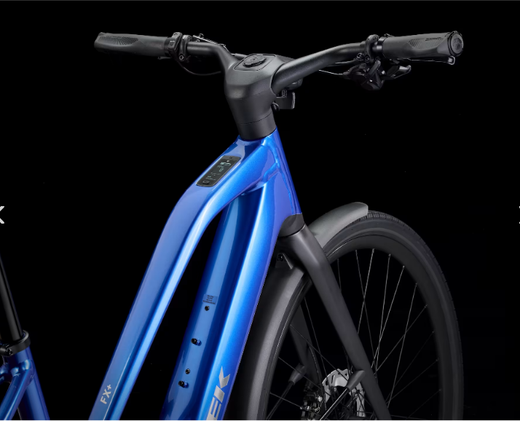

Intuitive controls and a stylish integrated display make it easy to change modes and view ride data.

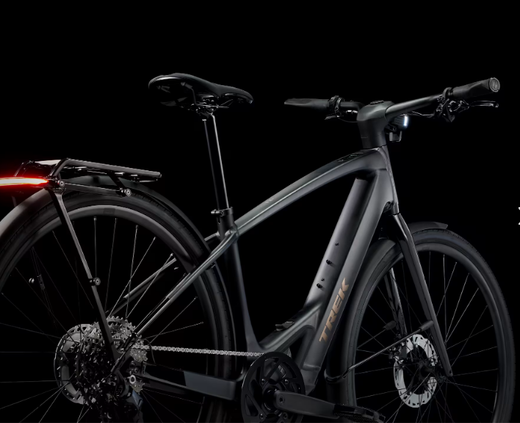

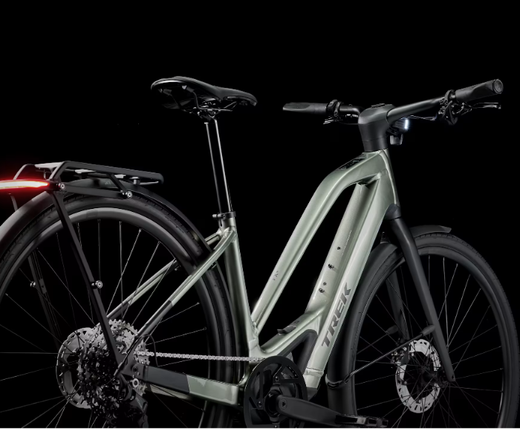

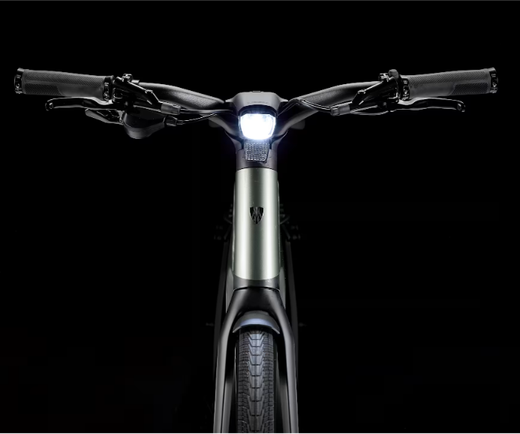

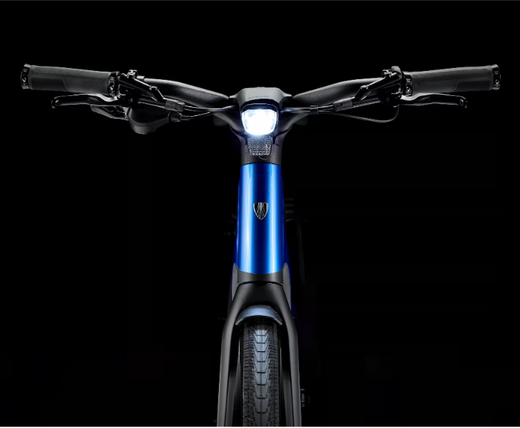

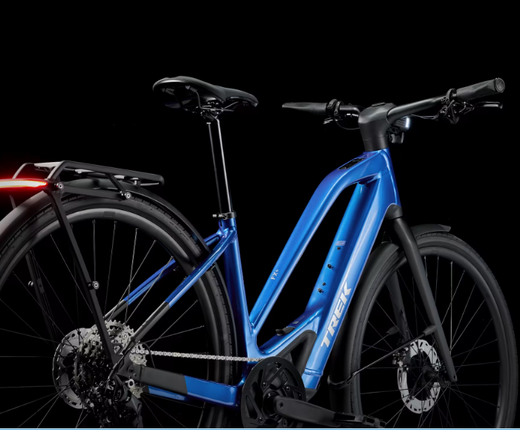

Delivered ready to ride, with integrated front and rear lights , a kickstand and a MIK rear rack with side mounting options.
Frame Assembly
Alpha Platinum Aluminum frame, internal cable routing , rack and fender mounts, disc post mount, kickstand support.
FX Carbon fork, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle
Wheels
Formula alloy front hub, centerlock disc, 100x12 mm thru axle
Front closure Bontrager Switch thru axle, removable cam
Bontrager alloy rear hub, sealed bearing, centerlock disc, Shimano 11-speed hub, 142x12 mm thru axle
Rear closure Bontrager Switch thru axle
Bontrager Paradigm rim, Tubeless Ready, 32 holes, 21 mm width, Presta valve
Stainless steel spokes 14 g, black
Bontrager H2 Hard Case Lite tire, wire rim, 30 tpi, 700x40 mm
Max. size. cover 700x42 mm
Electrical system
TQ 360 Wh battery
Charger TQ 4A Charger
Cycle computer TQ LED screen with Bluetooth and ANT+ connectivity
TQ-HPR50 motor, 50 Nm, maximum continuous power rating of 250 watts, maximum power of 300 watts

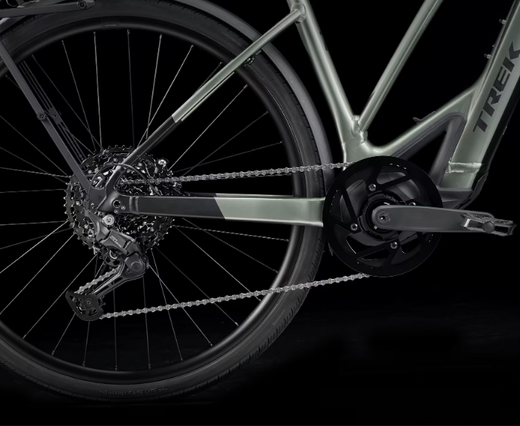

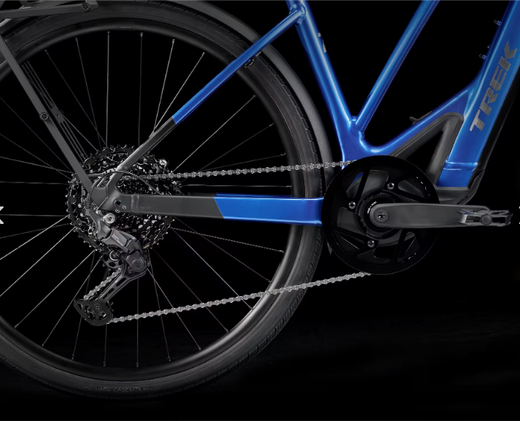

Transmission
Shimano U6000 shift lever, 10 speeds
Shimano CUES U6000 GS rear derailleur
ProWheel aluminum bottom bracket, 46T narrow-wide chainring, crank arm length 170 mm, ISIS axle
Shimano CUES LG400 cassette, LINKGLIDE, 11-48, 10 speeds
Shimano LG500 chain, 9/10/11 speeds
Pedal Bontrager City Pedals
Maximum chainring size 1x: 46T
Components
Bontrager Verse Comp saddle, steel rails, 165 mm width
Bontrager Comp seatpost, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
*Handlebar/stem (integrated)
Size: XS, S, M
Bontrager integrated handlebar and stem system, 15mm (virtual) handlebar height, 640mm width, 0 degree stem height, (virtual) stem length 90mm
Size: L
Bontrager integrated handlebar and stem system, 15mm (virtual) handlebar height, 680mm width, 0 degree stem height, (virtual) stem length 90mm
Bontrager Satellite Elite grips, aluminum with lock
Shimano hydraulic disc brake, RS600 lever, RS405 brake caliper
*Brake disc
Size: XS, S, M, L
Shimano RT-MT800, centerlock, 180 mm
Size: XS, S, M, L
Shimano EM810, centerlock, 160 mm
Disc size Maximum brake disc sizes: 180 mm front and rear
Accessories
*Light
Size: XS, S, M, L
Spanninga GLOW XE for electric bicycle
Size: XS, S, M, L
Herrmans H-Black MR9-E
Pletscher Comp 18 kickstand
Luggage rack Aluminum rear rack compatible with MIK
Weight
Weight M: 19.30 kg / 42.55 lbs
Weight limit This bicycle has a maximum weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
