Delivery times of 73 days
It is ideal for you if...

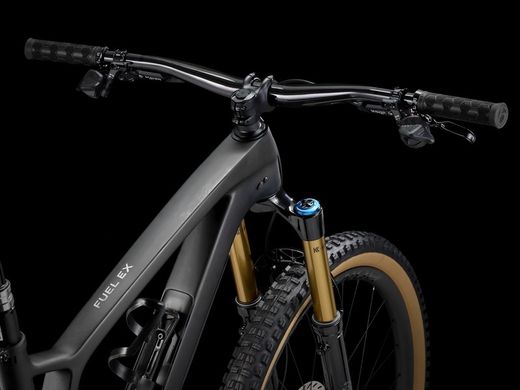

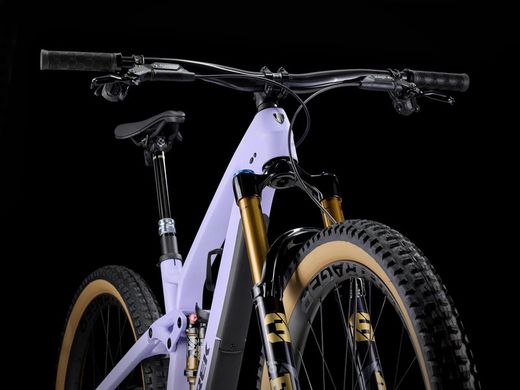

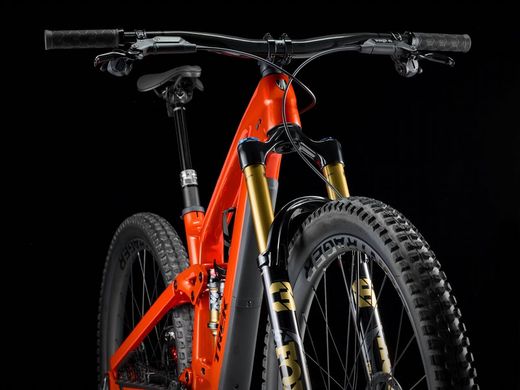

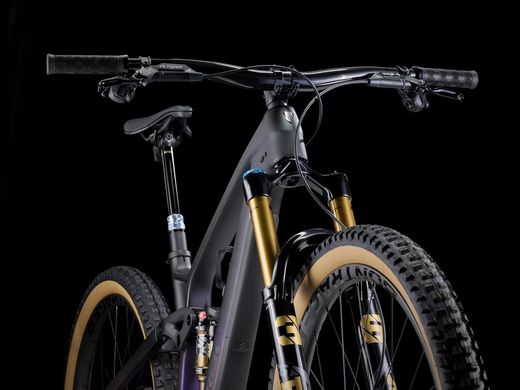

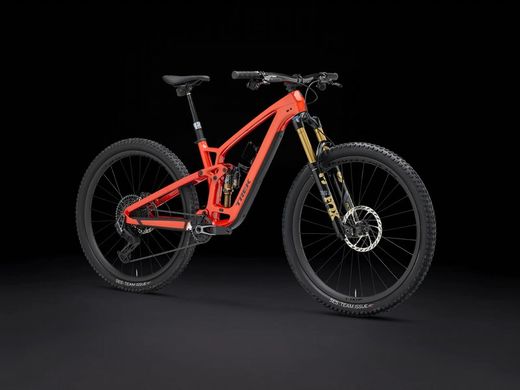

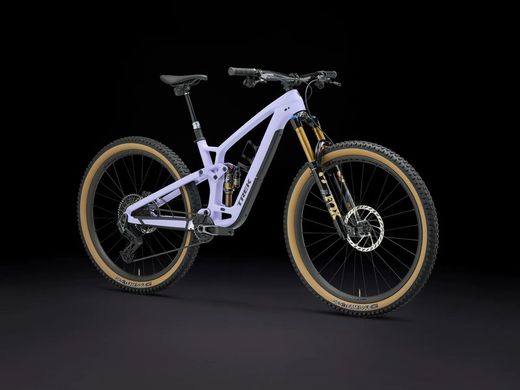

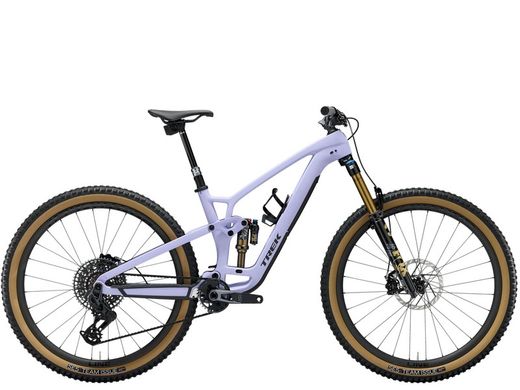

You have very refined taste when it comes to mountain bikes and you don't settle for just anything. You're looking for a bike to dominate the mountain from start to finish with the best technology available today, from a light and stiff carbon frame and wheels to stay on track in the most complicated terrain, to a FOX Factory fork and a completely wireless SRAM X0 groupset .
Features
The Fuel EX Gen 6 has 140/150mm travel with additional adjustment features and more stable handling, plus a frame more robust with storage internal.
We have expanded our range of sizes to adapt to all types of cyclists and we use the wheels that best fit according to the frame size: Size XS uses 27.5" wheels, S allows Choose between 27.5" or 29" wheels, and sizes M and above have 29" wheels.
It is ready to conquer thanks to the light carbon wheels that grip the terrain easily and they maintain the trajectory when the thing complicates.
The storage integrated into the frame allows you to easily carry everything you need, maintaining a stylized and simplified design.
An angle-adjustable headset (angled cups sold separately) and Mino Link let you choose from six different geometry configurations.
Headset Assembly frame
OCLV Mountain Carbon frame, internal storage, headset with angle adjustment, Mino Link adjustable geometry, adjustable suspension setting, internal cable routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, lift guard, ABP, UDH, Boost148, 140mm travel

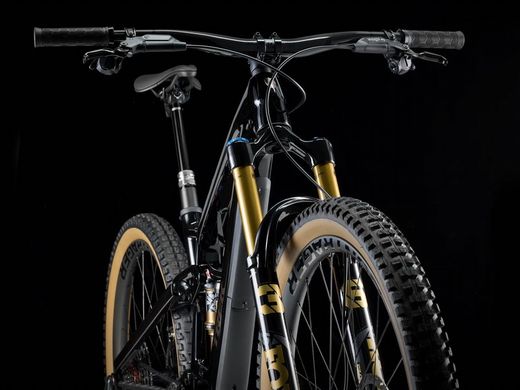

*Fork
Size: XS, S
Fox Factory 36, Float EVOL air, GRIP X2, tapered steerer, 44mm offset, Boost110, 15mm Kabolt mm
Size: M, ML, L, XL
Fox Factory 36, Float EVOL air, GRIP X2, tapered steerer, 44mm offset, Boost110, 15mm Kabolt mm

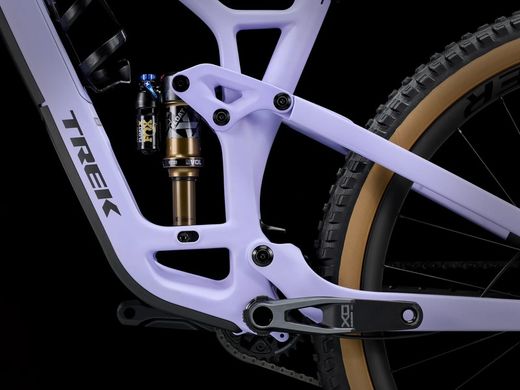

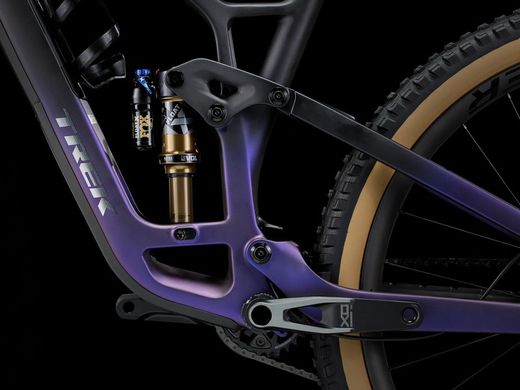

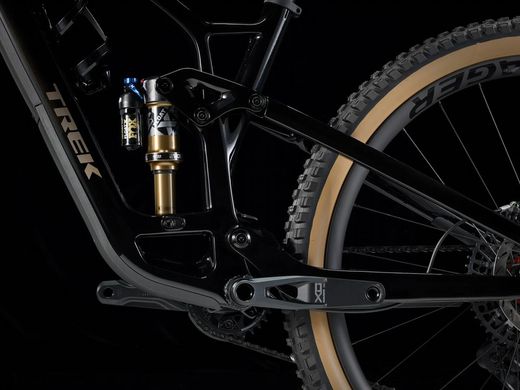

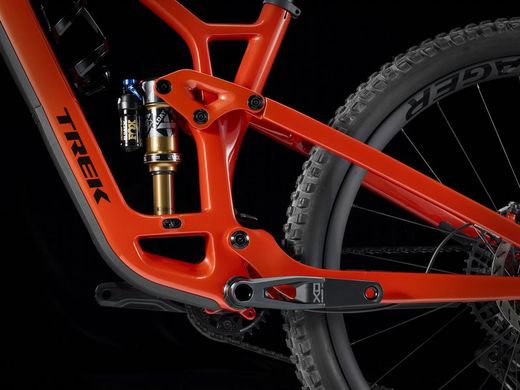

Fox Factory Float X shock, 2-position damping, 185x55 mm
Maximum compatible fork travel 160 mm, XP/P: 150 mm
Wheels
*Front wheel
Size: XS, S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6 bolts, Boost110, 15mm thru axle, 27.5"
Size: M, ML, L, XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6 bolts, Boost110, 15mm thru axle, 29"
*Rear wheel
Size: XS, S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12mm thru axle, 27.5"
Size: M, ML, L, XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12mm thru axle, 29"
Rear closure Bontrager Switch thru axle, removable cam
*Cover
Size: XS, S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 27.5x2.50”
Size: XS, S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 60 tpi, 27.5x2.50”
Size: M, ML, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 29x2.50”
Size: M, ML, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 60 tpi, 29x2.50”
Bontrager TLR Sealant Cover Piece, 6oz
Bontrager TLR rim tape
Max. size. Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

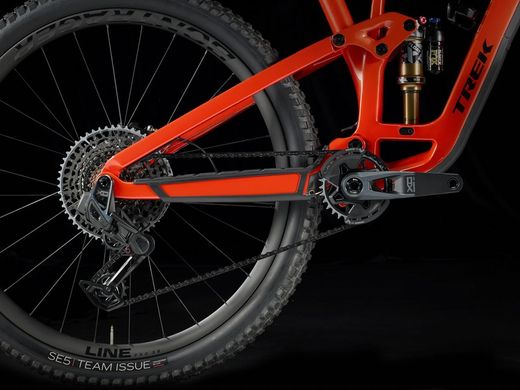

Transmission

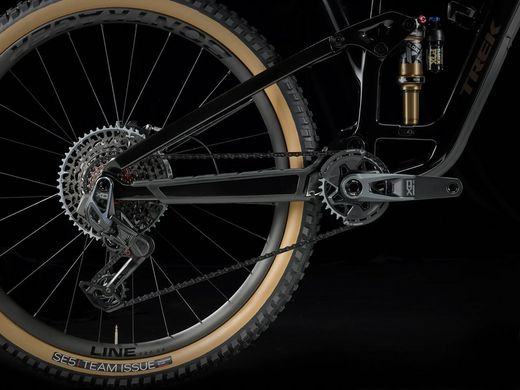

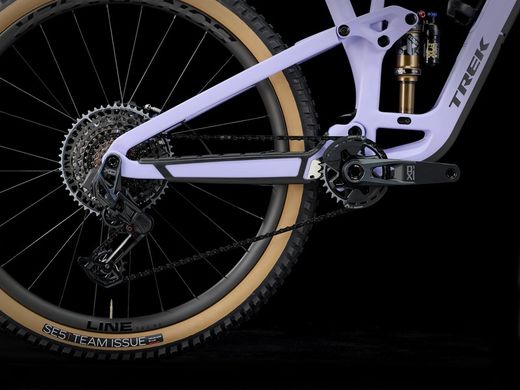

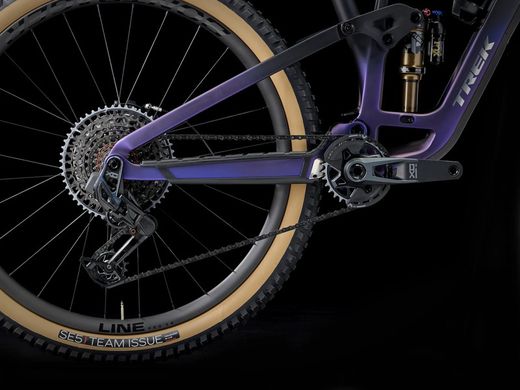

SRAM X0 Eagle AXS rear derailleur, T-Type
SRAM X0 Eagle bottom bracket, T-Type, DUB, 30T, 55mm chainline, 170mm length
SRAM DUB MTB Wide bottom bracket, 73 mm, BSA threaded
SRAM Eagle XS-1295 cassette, T-Type, 10-52, 12 speeds
SRAM X0 Eagle chain, T-Type, 12 speeds
Maximum plate size 1x: 36D, min. 32D
Components
Verse Short Pro saddle, carbon rails, 145 mm width
*Seatpost
Size: XS, S
RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
Size: M, ML
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
Size: L, XL
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

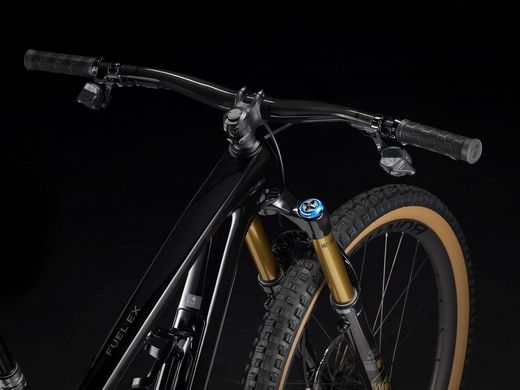

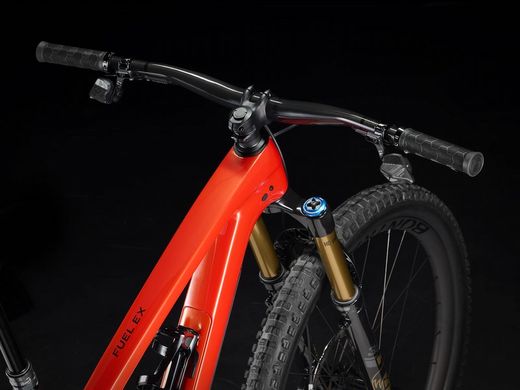

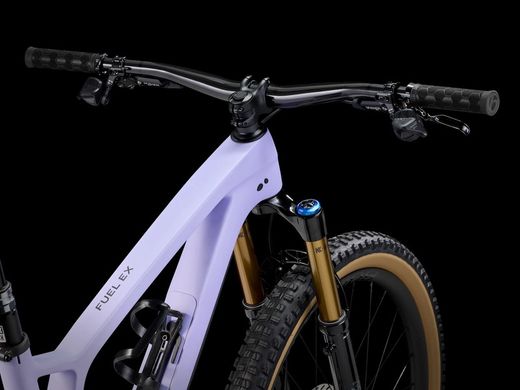

Bontrager Line Pro handlebar, OCLV carbon, 35 mm, height 27.5 mm, width 780 mm
Bontrager XR Trail Elite grips, nylon lock
Bontrager Line Pro stem, 35 mm, Blendr compatible, 0 degrees, 35 mm length
Headset Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, compatible with angle adjustment cup
SRAM Maven Silver 4-piston hydraulic disc brake
*Brake disc
Size: XS, S, M, ML, L, XL
SRAM HS2, 6 bolts, 180 mm
Size: M, ML, L, XL
SRAM 6 bolts, 200 mm
Disc size Maximum brake disc sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Accessories
Bontrager BITS integrated multi-tool
Weight
Weight M - 14.78 kg / 32.59 lbs (with TLR sealant, without tubes)
Weight limit This bicycle has a maximum weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
